Application

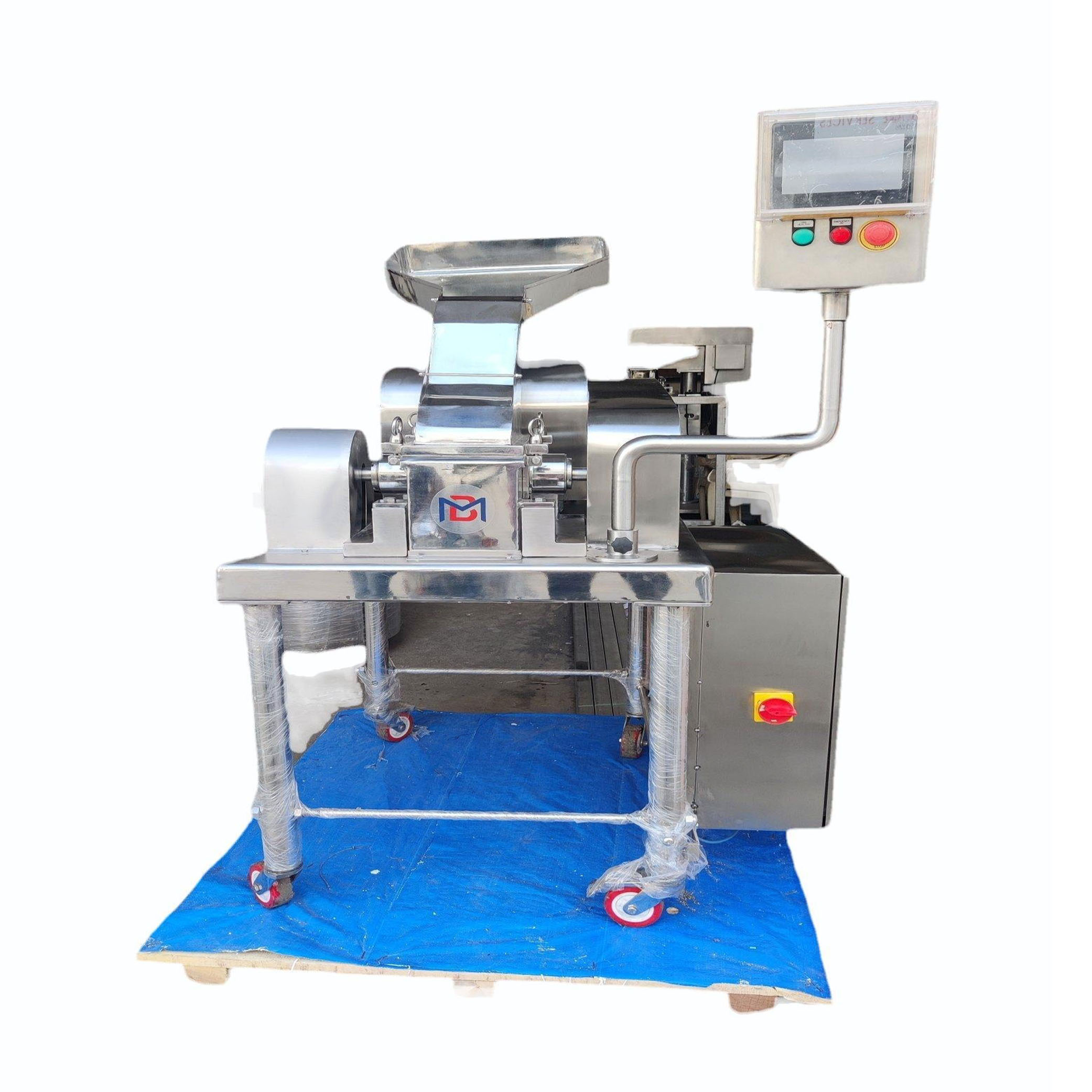

Comminuting mill is used for the downsizing, milling, pulverization and dispersion of wet and dry products in pharmaceutical, chemical, food, cosmetics, fertilizers industry etc.

The product is poured from the top through in feed hopper and material falls on the rotor blades beater assembly for milling or pulverization. Due to the knife edges mounted on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening. Knife edges can be removed for cleaning very easily.

Salient Features

  • All Product contact parts S.S. 316/ 316L & non-contact parts S.S. 304.
  • High speed milling, granulating, pulverizing, mixing and size reduction of wet & dry material.
  • Easy and simple to change knife to impact forward vice-versa by reversible chamber.
  • Dynamic balanced beater assembly bearings are in a separate pillow block at outside chamber.
  • Wide range of sieve of perforated and wire-mesh.
  • Fitted on castor wheels for easy mobility.

Optional Accessories

  • Jacketing chamber for water cooling.
  • AC frequency drive for variable speed.
  • Flame proof motor and push button.
  • Uniform feeding system with feeder screw with variable drive.
  • PLC & HMI.

Technical Specification

Model / Size BMCMM-16 BMCMM-32
Output (Kg/Hr)* 50 to 800 kg (Depends on product, speed and sieve size) Up to 2000 kg (Depends on product, speed and sieve size)
Blades (Nos.) 16 32
Rotor Speed (RPM) 1000 / 2200 / 4400 1000 / 2200 / 4400
Screen Area (mm) 495 x 135 495 x 270
Motor (HP) 7.5 15.0
