Application

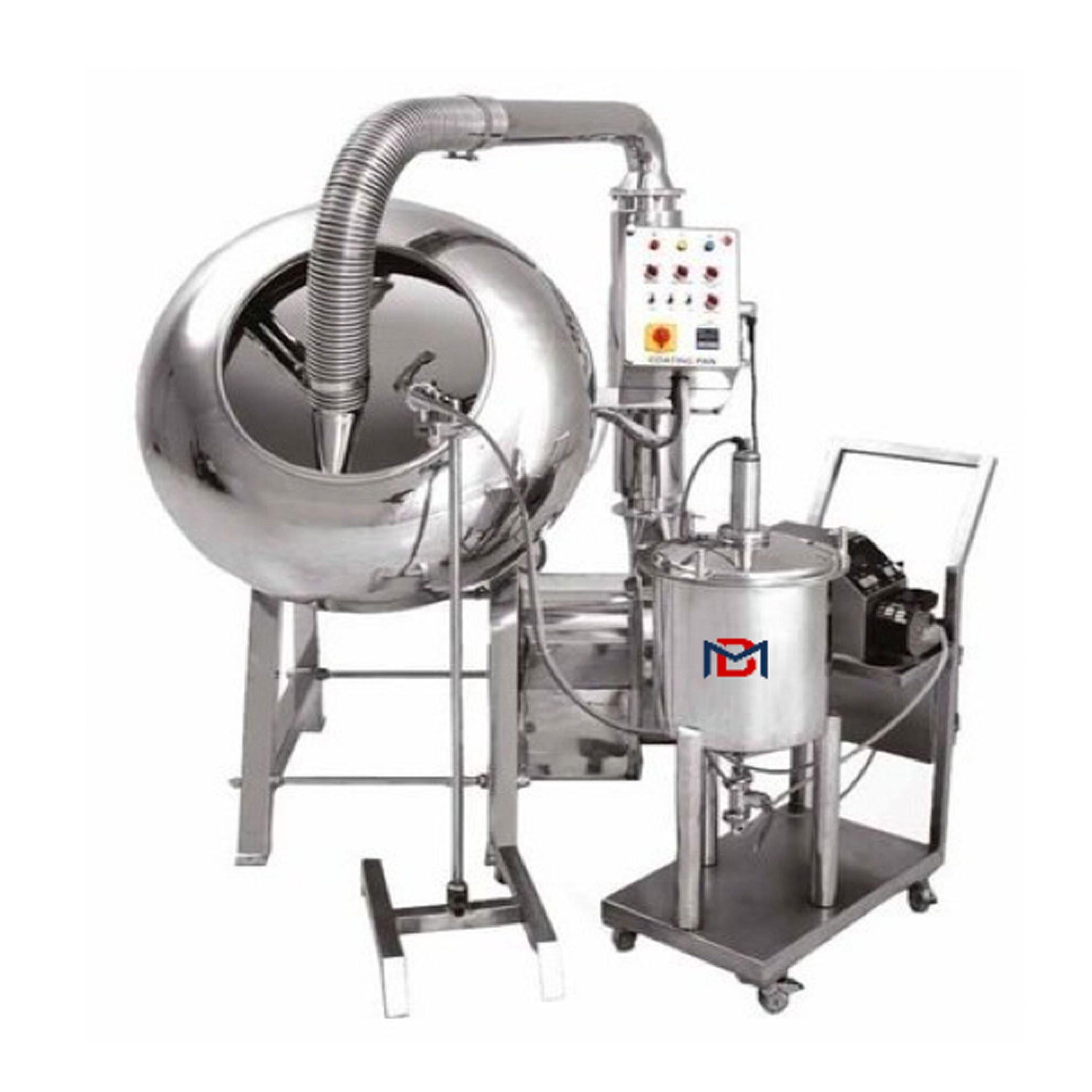

Conventional coating machine are used to sugar coat tablets, pills, etc in for a variety of industries such as Pharmaceutical, Confectionery, Food and others. They are also used for rolling and heating beans and edible nuts or seeds.

The product is to be filled inside the pan. During the rotation motion, coating material is sprayed by spraying system according to the technological process and rational technological process. So process materials (product) are coated due to rotating pan. The coating round pot is rotated by variable speed. At the same time hot air is supplied through inbuilt Hot air blower system which dries rapidly (heating or cooling) and evenly thus forming a solid and smooth surface.

Salient Features

  • All contact parts S.S. 316 & non-contact parts S.S. 304.
  • Conventional coating system for manual film coating and sugar coating.
  • Machine is designed with fabricated structure fitted with SS enclosure which makes simple, cleanable outside covering and mounted on anti-vibration pad.
  •  Atomized Spraying system with Spray Gun, Peristaltic Pump and Solution tank and Electro Pneumatic controls.
  • Closed powerful pan drive with reduction gearbox and motor by variable speed pulley.
  • Movable hot air blowing system with electric heater.
  • Easy to replace polishing pan and other size coating pan.

Optional Accessories

  • A.C. frequency Drive for pan.
  • Fixed or detachable type baffles.
  • Interchange different size Pan & Polishing Pan.
  • Pressurized vessel with spray gun.
  • Flame Proof Electrical.
  • Pellegrini type Coating machine.

Technical Specification

Model / Size BMCP 12” BMCP 18” BMCP 24” BMCP 30” BMCP 36” BMCP 48” BMCP 60” BMCP 72”
Loading Capacity (Kg)* 3 to 5 6 to 8 20 to 25 30 to 50 40 to 70 80 to 150 200 to 350 400 to 700
Main Motor (HP) 0.5 0.5 1.0 1.5 3.0 3.0 5.0 5.0
Blower Motor (HP) 0.5 0.75 1.0 1.5 3.0 5.0 7.5 7.5
Blower Motor CFM 300 400 400 1000 1500 1800 2600 3500
Heater Capacity (Kw) 1.0 1.0 1.5 3.0 3.0 4.5 5.0 6.0
