Application

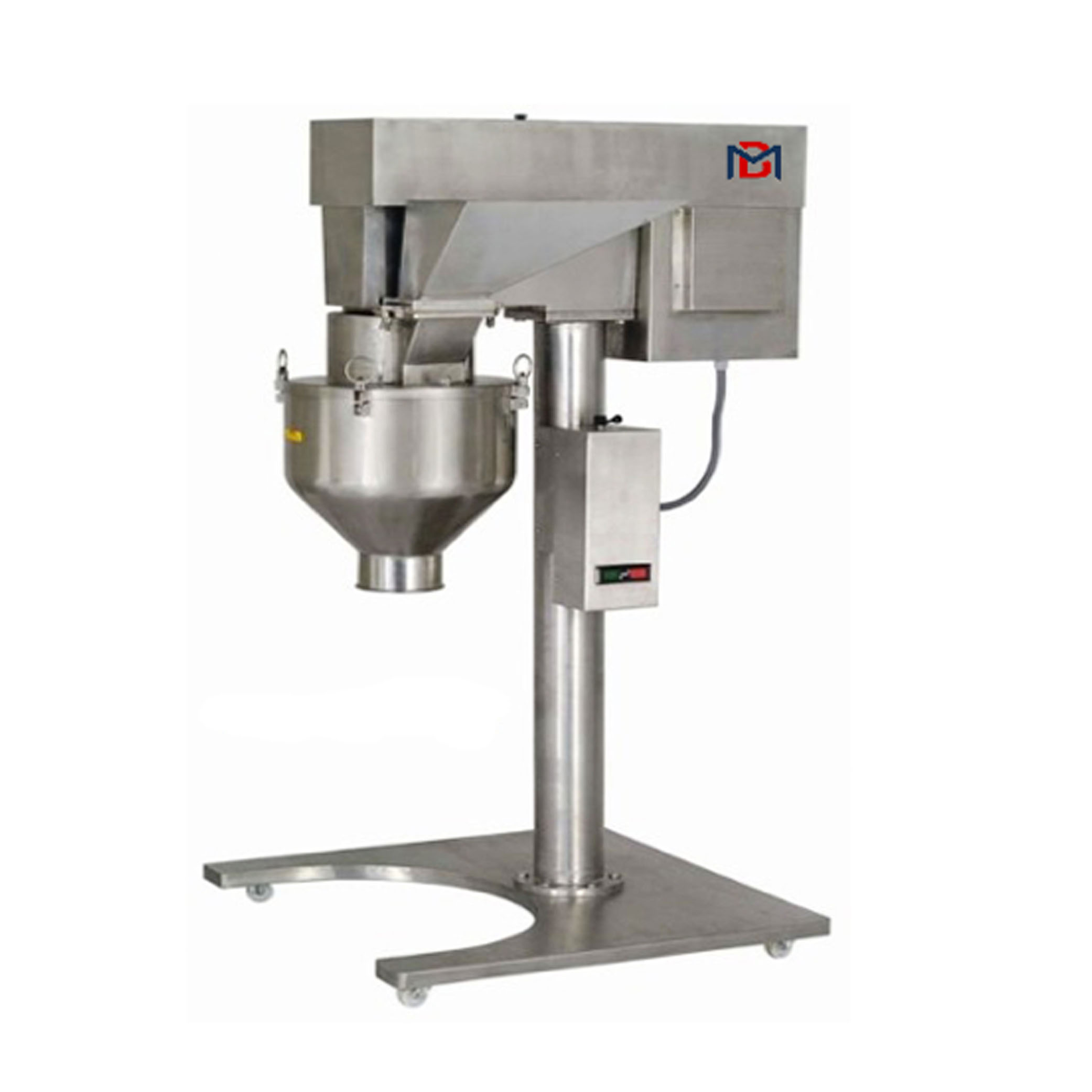

The Multi Mill operates on the principle of variable force swing beaters rotating within a cylindrical screen or perforated sieve. The material to be processed is fed into the milling chamber through a hopper. The rotating blades or beaters inside the milling chamber create a high-speed impact and shearing action, breaking down the particles.

The particles that are smaller than the perforations of the sieve pass through and are collected as the final product. Larger particles are continuously reduced in size as they are subjected to repeated impact and collisions with the rotating blades and the screen. The Multi Mill is equipped with different mesh screens to achieve the desired particle size.

Salient Features

  • All Product contact parts AISI 316 & Non-contact parts AISI 304.
  • High speed milling, granulating, pulverizing, mixing and size reduction of wet & dry material.
  • Output capacity 50 Kg to 200 Kg per hour.
  • Easily removable contact parts for cleaning & inspection.
  • Easy Mobility.
  • Over load protection.
  • Variable force by swing better having knife & impact edges are rotating within screen.
  • Direction of beaters can be changed by forward- reversible switch.
  • Various combinations of perforated sieves & wire mesh.

Optional Accessories

  • AC frequency drive for variable speed.
  • Belt less Drive.
  • Inline milling process with RMG and Sifter.
  • Flame Proof electrical.

Technical Specification

Model / Size BMMTM
Output (Kg/Hr)* 50 Kg to 200 Kg Depends on products, speed and sieve size
Rotor Speed 750/1500/2300/3000 RPM by step pulley Option for VFD
Rotor Diameter (mm) 250
Motor (HP) 3 HP/3 Phase/1440 RPM
