Application

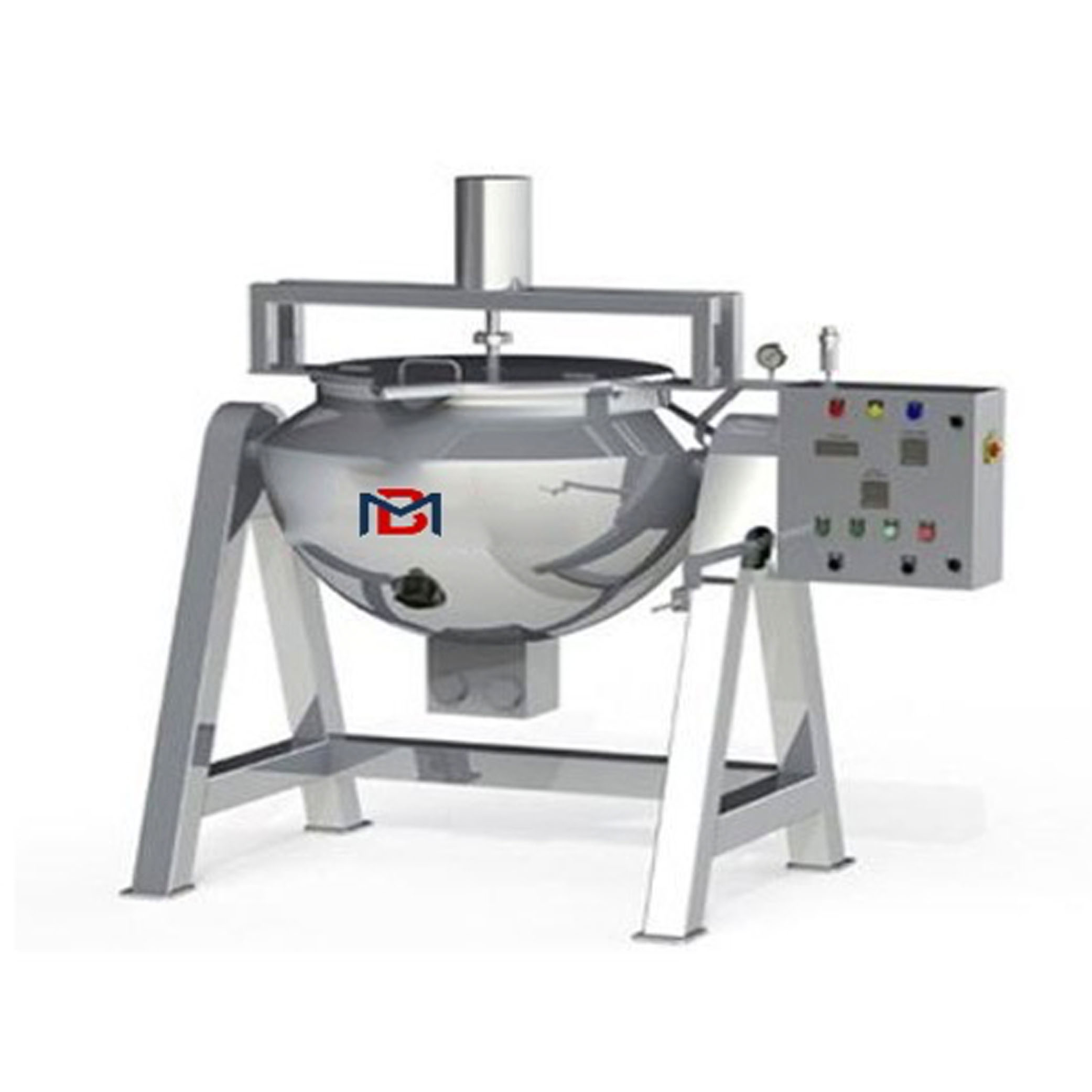

A Paste Making Machine is a specialized industrial equipment used to produce various types of pastes and viscous products in large quantities. It is commonly used in the food processing, pharmaceutical, cosmetic, and chemical industries, among others. The machine automates the process of mixing, blending, and homogenizing ingredients to create consistent and uniform pastes.

Salient Features

  • Compact GMP Model.
  • All contact part made of Stainless Steel 316 materials.
  • Hemispherical design for proper mixing paste.
  • Jacket provided with steam/thermic fluid heating arrangement.
  • Motor and gear box assembly mounted on top side, so no hindrance to machine operation.
  • Tilting arrangement for kettle is provided for discharge for starch paste.
  • Insulation provided to jacket in order to avoid heat loss.
  • Anchor type impeller design for proper mixing of paste.
  • Available in Size from 10 Liters to 250 Liters.
  • Bottom discharge with flush bottom ball valve hence no chance of residual paste.
  • Mechanical tilting with hand wheel arrangement in standard model.
  • Special design Teflon scrappers for homogenous mixing of paste.
  • Agitator can detach easily for cleaning and sterilization.

Optional Accessories

  • Motorized drive mechanism for tilting.
  • Hydraulic lifting and lowering arrangement.

Technical Specification

Model / Size BMPK 50 BMPK 100 BMPK 150 BMPK 200
Gross Volume [in litres.] 50 100 150 200
Working Volume [in Litres] 37 75 110 150
Jacket Option Yes Yes Yes Yes
Heating Media Steam/Oil Steam/Oil Steam/Oil Steam/Oil
Motor [H.P.] 1/td> 1.5 1.5 2
