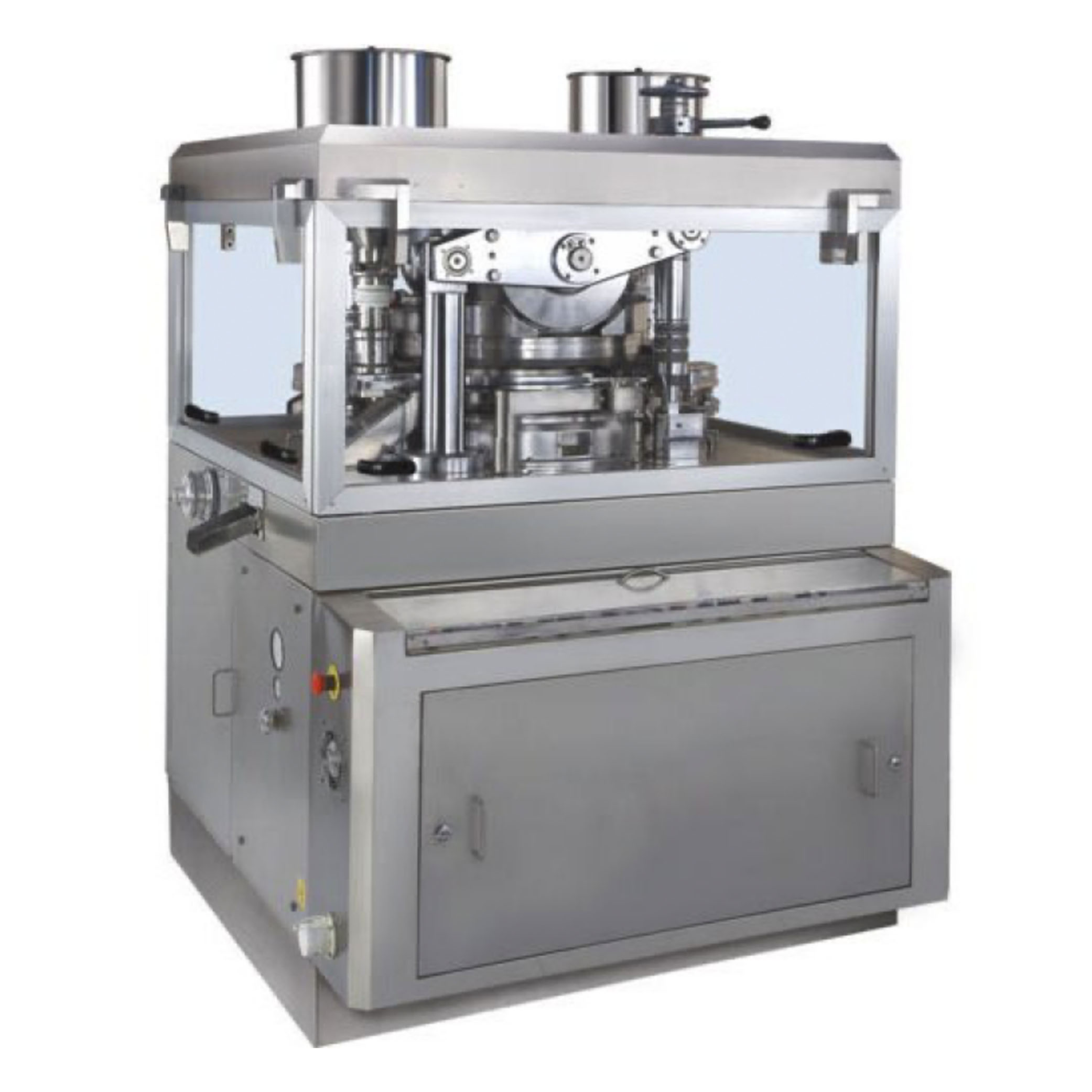

Salient Features
- Compliance with cGMP Standard
- higher output suitable for large batch production
- Inter locked guards, for safety,
- Helical gear ring, to drive the turret, SS 316 Contact Parts
- Easily removable bottom driven rotary force feeders
- ACVF Drive for Main motor & also ACVF Drive for Feeder Motors
- Electromagnetic Clutch
- All the tablet parameters can be set from outside of the tableting zone.
- Accumulator Cylinder for pressure loading and overload Release
- Continuous lubrication Pump for Turret Helical Gear & Pinion
- One shot Lubrication pump is provided for lower roll pins
- Lower Punch seals in Turret.
- 3 Types of Filling cams
- Upper punch penetration
- Round hopper with butterfly valve
- Upper & lower pressure rolls fitted with ball bearings
- Hydraulic gauge is provided on lower guard for easy view
- Single PCS Turret
- Acrylic upper guards & SS Lower Guards
Optional Accessories
- PLC Controls with HMI Touch screen interface.
- Powder level sensor at Feed Hopper.
- Tablet Rejection on Machine start up and stop and random sampling device
- Gravity Feeding System
- Bi-layer tablet facility
- 3 Pcs Turret with Electroless Nickel Plating & S.S. 316 Die Plate.
- Hydraulic Power Pack.
Technical Specification
| Machine Type | Press-II 37 | Press-II 45 | Press-II 55 | Press-II 61 |
| Number of Station | 37 | 45 | 55 | 61 |
| Type of Tooling | “D” | “B” | “BB” | “BB” |
| Output -Tablet/Hr.* | 44,400 to 222,000 | 54,000 to 324,000 | 66,000 to 396,000 | 73,200 to 439,000 |
| Max. Operating Pressure | 10 Tons | 6.5 Tons | 6.5 Tons | 6.5 Tons |
| Max. Tablet Dia. | 25 mm | 16 mm | 11 mm | 11 mm |
| Max. Depth of fill | 20.5 mm | 17.5 mm | 17.5 mm | 17.5 mm |
| Upper Punch Penetration | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm |
| Main Electric Motor | 7.5 HP/5.5 kW, 3 Phase, 1440 RPM, 415V, 50 Hz. | |||
| Feeder Motors (2 Nos.) | 0.25 hp/0.18 kw / 1440 RPM / 415 V | |||
| Total Power Consumption | 9.5 HP / 7 kW | |||
| Overall Dimensions(mm) | 1485 (L) x 1430 (W) x 1750 (H) | |||
| Net Weight | 2700 Kg | |||
*Machine output mention is rated outputs and can vary depending on the product characteristics, tablet dimensions/shape/size/depth of fill/ambient condition/operator skills & machine maintenance.
