Application

- The system is unique dry material transfer system for dust free and avoid to human touch. The vacuum transfer system is used in Pharmaceutical, Food, Argo Chemical, Sugar Industries and chemical. The system is use full for inline milling, sifting, blending, loading and unloading.

Salient Features

  • Design is cGMP - Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non-contact parts AISI 304.
  • Capacity available 100 Kg to 5000 Kg/hr.
  • Can be used for transfer of products having bulk densities up to 1.0gm/cc.
  • Avoids product waste, loss and contamination.
  • IPC Loading with inline Sifting.
  • RMG Loading.
  • RMG with inline Sifting.

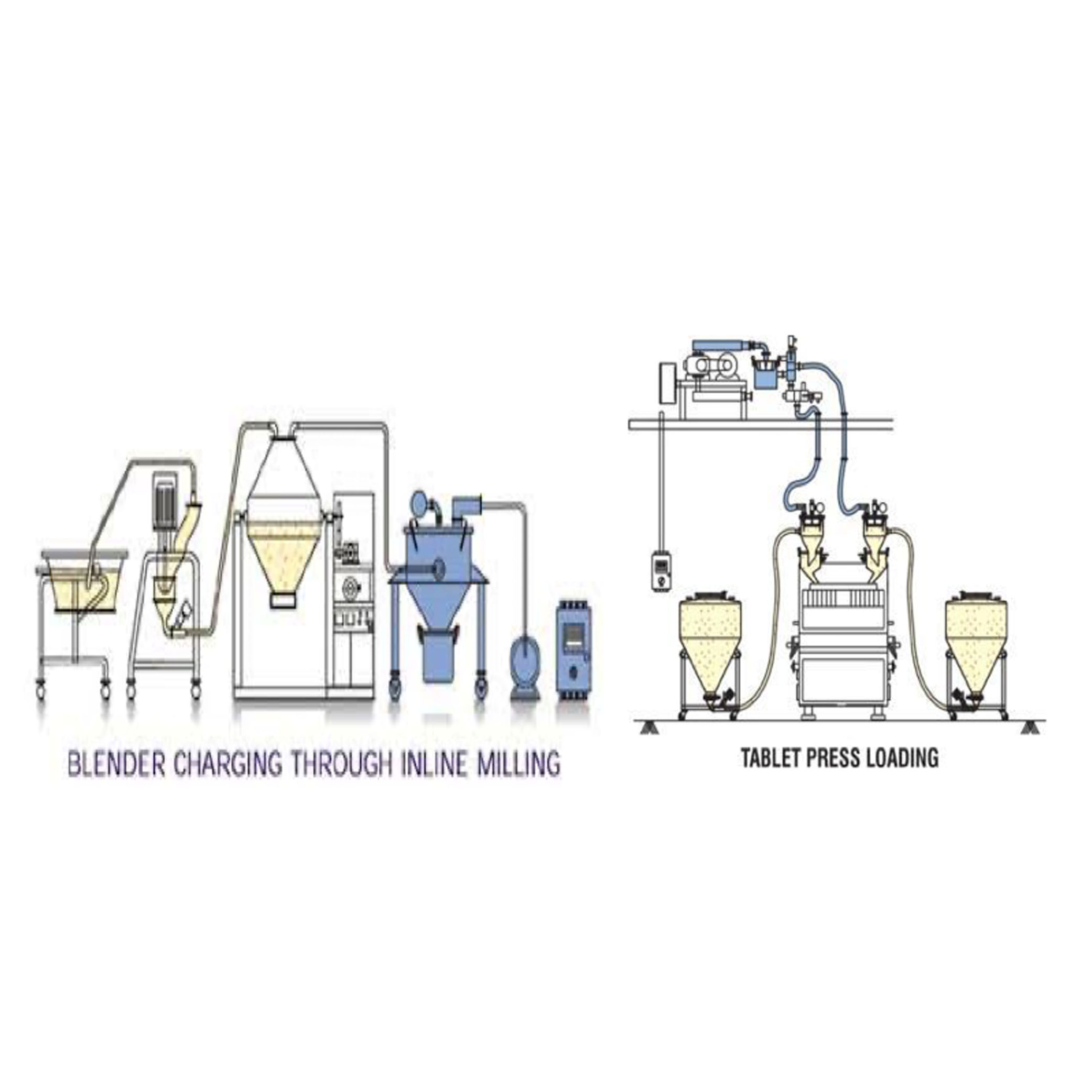

  • Blender Loading with inline Milling.
  • Tablet Press Loading.
  • Coater Loading.
  • Blister/Strip pack Loading.
  • Roll Compactor Loading.

Optional Accessories

  • Flame Proof Construction
  • Filter Bag for Convey Receiver.
  • Filter Bag for Secondary Filter.
  • Variable Frequency Drive.
  • PLC Based Color Touch Screen Display.

Technical Specification

Capacity 100 to 5000 Kg/Hour
Vacuum Source Specially Designed Blower
Material of Construction Contact Parts S.S. 316
Material of Construction Non-Contact Parts S.S. 304
Level Sensing Through Level Sensor
Filter Cleaning Air blasted pulse jet system
System Control Sequential Timer or PLC based
