Application

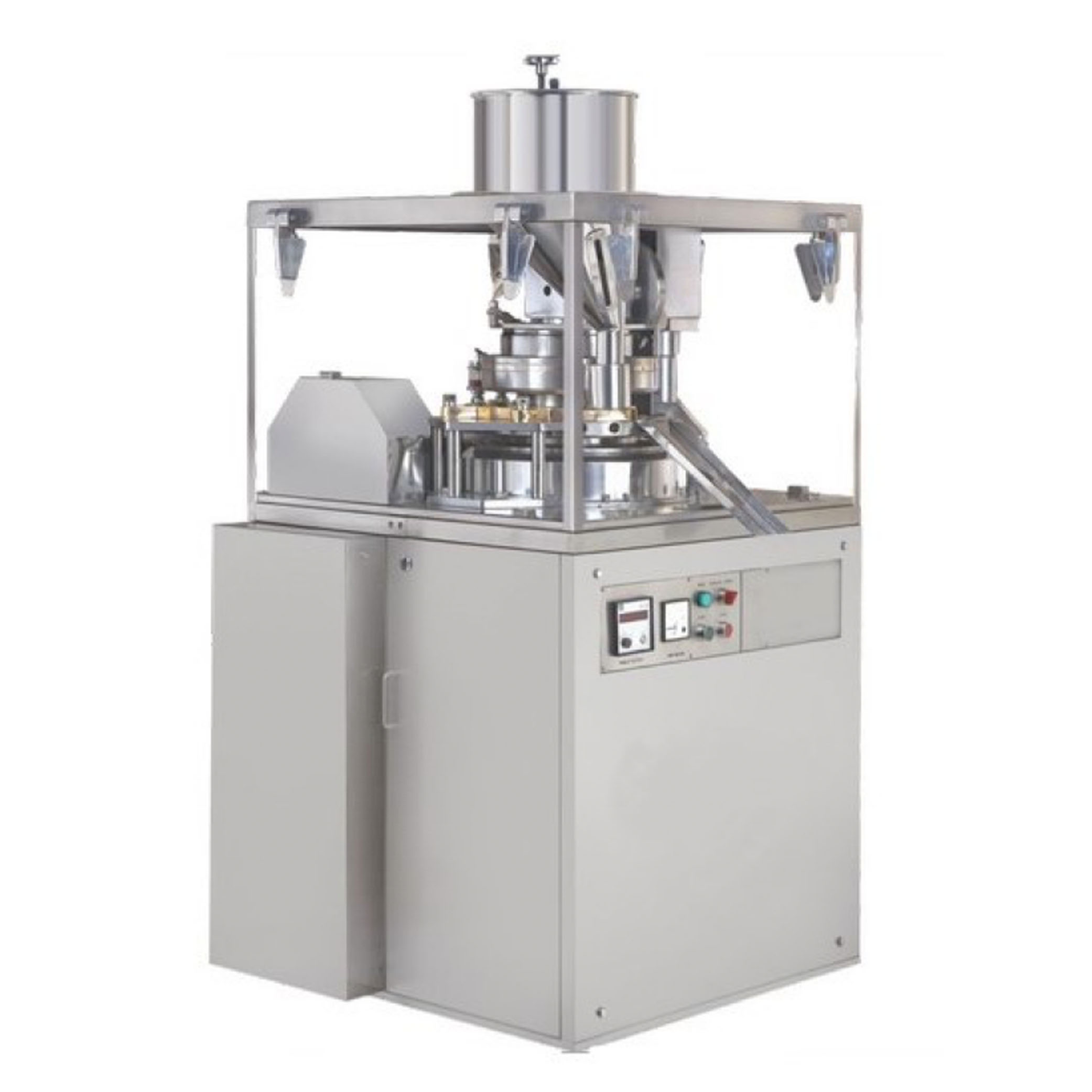

A single Sided Rotary Tablet Press Machine is an entry level tablet press. It is specially designed for the small production batches. This machine model is suitable for a variety of applications in pharmaceutical and other industries like food, chemical, naphthalene, confectionery etc. The Tablet Press is designed in an effort to exceed the highest cGMP requirement with use of advance technology and to ensure the most economical and efficient tablet production.
Salient Features
- Square CGMP Model.
- Machine is having C.1. Body & C.1. middle plate.
- Paint free tablet manufacturing zone.
- Excellent and Operator friendly material feeding system.
- Lower Guards of polished stainless steel.
- Upper Guards of transparent acrylic material.
- Electronic / Digital, Tablet cum RPM counter.
- Turret of Special grade SG Iron Casting.
- Lower Punch wiper seal to prevent lower punch jamming.
- Higher turret speed 17 to 40 RPM.
- Upper punch penetration system.
- Interlock switch to all upper guards.
- Variable speed Pulley.
- One shot lubrication system.
- Double sided lifting cams.
- Anti-Vibration mounts.
- Available with Electromagnetic Clutch.
Optional Accessories
- 3 Pc. turret with S.S 316 Die Pot.
- Pre. Compression arrangement.
- Rotary Force Feeder system with VFD.
- PLC Controls with touch screen.
- Auto Lubrication.
Technical Specification
| Machine Type | BMD4-16 | BMD4-20 | BMD4-23 | |
| Number of Station | 16 | 20 | 23 | |
| Type of Tooling | "D" | "D" | "DB" | |
| Output-Tablets/Hr.* | 13,400 to 40,320 | 16,800 to 50,400 | 19,320 to 57,950 | |
| Max. Tablet Dia. | 25mm | 25mm | 16mm | |
| Max. Depth of Fill | 20.5mm | 20.5mm | 17.5mm | |
| Max. Operating Pressure | 10 Tons | |||
| Upper Punch Penetration | 1.5-8mm | |||
| Main Electric Motor | 3HP/2.2kW, 3 Phase, 1440 RPM, 415V, 50Hz. | |||
| Force Feeder Motor-Optional | 0.25HP/0.18kW x 2 nos. | |||
| Ovarall Dimensions (mm) | 1040(L) x 910(W) x 2150(H) | |||
| Net Weight | 1150 | |||
*Machine output mention is rated outputs and can vary depending on the product characteristics, tablet dimensions/shape/size/depth of fill/ambient condition/operator skills & machine maintenance.
